ProBond Alternative
Looking for an Alternative for the discontinued Parker ProBond product?
We have created a powerful new depth media filtration platform that happens to be the perfect Parker ProBond alternative!
SWITCH TO JONELL SYSTEMS TRI-SHiELD!
Depth Filtration 2.0 | 3X dirt holding capacity | Environmentally friendly

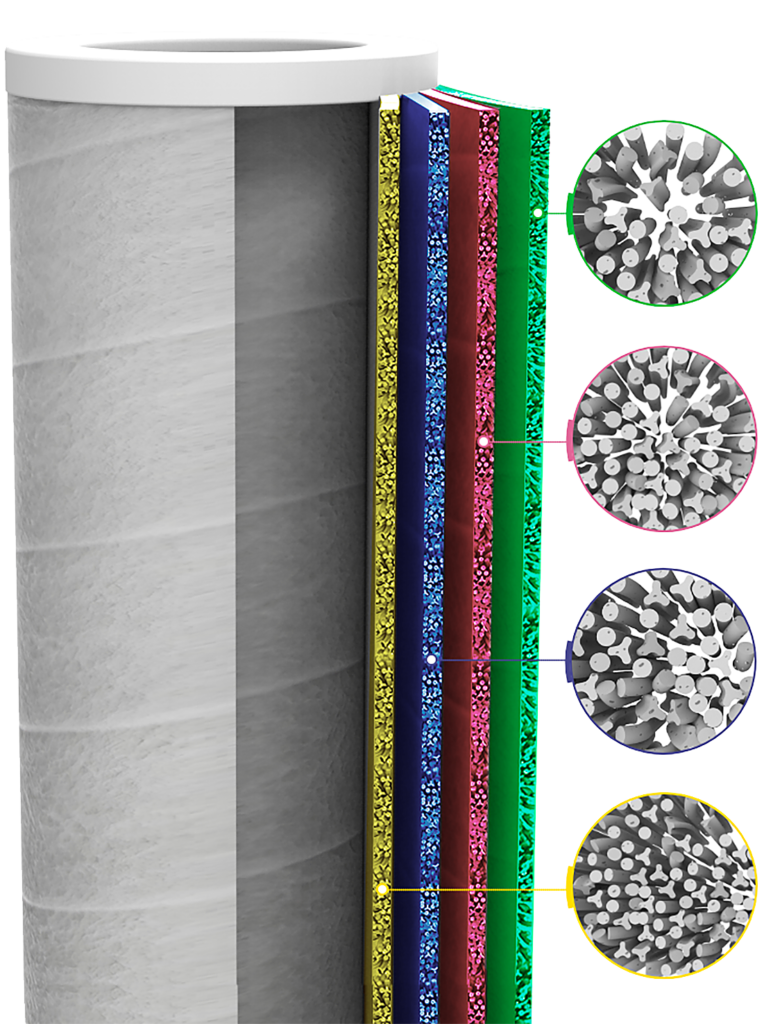

TRI-SHiELD™ patented depth media platform, has been developed to create superior depth filtration technology for liquid applications. Highly engineered blend of fibers are thermally bonded in multiple unique spiral layers of advanced treated media to provide optimal efficiency, dirt loading, and a reduced cost of ownership to shield downstream equipment.
Compared to resin bonded technology, our blend of Tri-Lobal and synthetic fibers provides a larger effective surface area per media volume and less flow resistance than traditional fibers resulting in extremely high removal efficiencies and longer life.
Advances of TRI-SHiELD:
- Up to 3 times the dirt holding capacity of equivalent resin bonded
- Up to 30 % lower clean differential pressure at equivalent efficiency
- Resin and binder free design allows for greater deformable and shear sensitive contaminant capacity
- Environmentally friendly manufacturing process – no phenolic resin used
- Coreless, adhesive free design options with no end caps allow for greater chemical compatibility
- Multiple thermally bonded layers, greater effective filtering area
- Same day shipping for SKUs in stock & 7-10 Day lead time for SKUs not in stock
Application Range:
- Oil & Gas Fluids
- Petroleum Products
- Glycol
- Condensate
- Paints
- Printing Inks
- Adhesives
- Resins
- Emulsions
- Chemical Coatings
- Organic Solvents
- Plasticizers
- Waxes

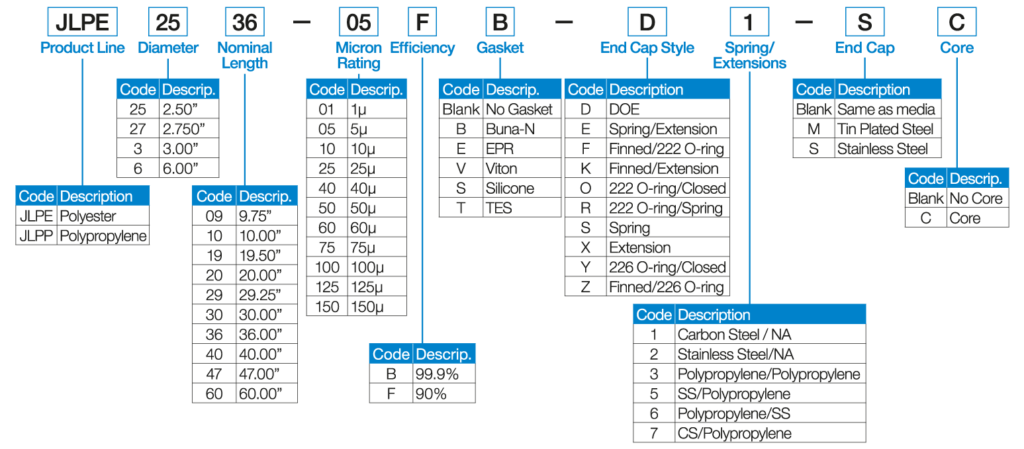

Nomenclature:
Brochures
Liquid Filtration
Find out more about the TRI-SHIELD media technology and its benefits.
Case Study
TRI-SHiELD cartridges reduced the operations costs in an offshore platform.
Wondering if TRI-SHiELD is the right choice for your ProBond alternative ?
Get in touch with Jonell Systems today to find about about which TRI-SHiELD cartridge will be suitable for your application.
Approaching filtration with a process optimization mindset,
- our wide solution range, now including TRI-SHiELD,
- vast industry experience and
- application knowledge
allows us to recommend the right solution for your filtration needs.
